“Control Panel Applets” dengan Visual Basic.NET 2010

Contoh sederhana memanggil beberapa Properti Windows yang terdapat pada Control Panel dan event mouse over.











1. Jalankan terlebih dahulu aplikasi Visual Basic 2010

2. Pada tabulasi “Start Page” pilih “New Project” atau tekan tombol “Ctrl + N” pada keyboard

3. Pada jendela “New Project” pilih “Windows Forms Application” kemudian tekan tombol “OK”



Control Properties

Object	Name	Properties	Setting
Form	Form1	Font Form Border Style Maximize Box Start Position Text	Tahoma; 8,25pt Fixed Single False Center Screen Control Panel Applets
Button	Button1	Text	System Properties
Button	Button2	Text	Regional Settings Properties
Button	Button3	Text	Date/Time Properties
Button	Button4	Text	Mouse Properties
Button	Button5	Text	Display Properties
Button	Button6	Text	Multimedia Properties
Button	Button7	Text	Add/Remove Programs
Picture Box	PictureBox1	Border Style Size Mode	Fixed Single Stretch Image



Event Program

Public Class Form1
    Dim FILE_NAME As String = Application.StartupPath & "\Image\"
    Private Sub Button1_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles Button1.Click
        Process.Start("Desk.cpl")
    End Sub

    Private Sub Button2_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles Button2.Click
        Process.Start("Sysdm.cpl")
        Dim LoadPicture As New Bitmap(FILE_NAME & "System Properties.jpg")
        PictureBox1.Image = LoadPicture
    End Sub

    Private Sub Button3_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles Button3.Click
        Process.Start("Timedate.cpl")
    End Sub

    Private Sub Button4_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles Button4.Click
        Process.Start("Mmsys.cpl")
    End Sub

    Private Sub Button5_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles Button5.Click
        Process.Start("Main.cpl")
    End Sub

    Private Sub Button6_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles Button6.Click
        Process.Start("Intl.cpl")
    End Sub

    Private Sub Button7_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles Button7.Click
        Process.Start("AppWiz.cpl")
    End Sub

    Private Sub Button2_MouseHover(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles Button2.MouseHover
        Dim LoadPicture As New Bitmap(FILE_NAME & "System Properties.jpg")
        PictureBox1.Image = LoadPicture
    End Sub

    Private Sub Button6_MouseHover(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles Button6.MouseHover
        Dim LoadPicture As New Bitmap(FILE_NAME & "Regional Settings Properties.jpg")
        PictureBox1.Image = LoadPicture
    End Sub

    Private Sub Button3_MouseHover(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles Button3.MouseHover
        Dim LoadPicture As New Bitmap(FILE_NAME & "DateTime Properties.jpg")
        PictureBox1.Image = LoadPicture
    End Sub

    Private Sub Button5_MouseHover(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles Button5.MouseHover
        Dim LoadPicture As New Bitmap(FILE_NAME & "Mouse Properties.jpg")
        PictureBox1.Image = LoadPicture
    End Sub

    Private Sub Button1_MouseHover(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles Button1.MouseHover
        Dim LoadPicture As New Bitmap(FILE_NAME & "Display Properties.jpg")
        PictureBox1.Image = LoadPicture
    End Sub

    Private Sub Button4_MouseHover(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles Button4.MouseHover
        Dim LoadPicture As New Bitmap(FILE_NAME & "Multimedia Properties.jpg")
        PictureBox1.Image = LoadPicture
    End Sub

    Private Sub Button7_MouseHover(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles Button7.MouseHover
        Dim LoadPicture As New Bitmap(FILE_NAME & "AddRemove Programs.jpg")
        PictureBox1.Image = LoadPicture
    End Sub
End Class

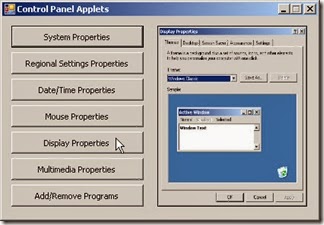

4. Klik tombol “Start Debuging” atau tekan tombol “F5” pada Keyboard untuk menjalankan aplikasi.
